Capping Machines

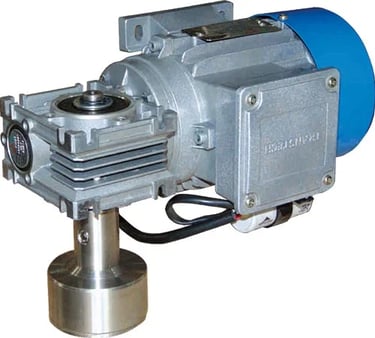

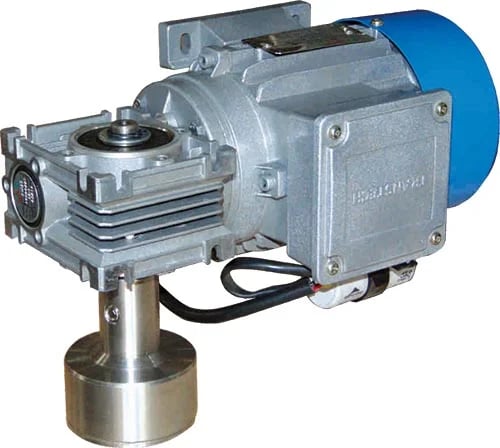

PET Bottle Capping Machine – Motorized
This Capping Machine is used for capping PET bottles.
Any PET bottle can be capped. However the capping die may vary according to the cap diameter.
The Capper is powered by a 0.25 hP I PH motor with an attached gearbox.
The capping die is fitted on the output shaft of the gearbox. The die rotates at an approximate speed of 100 RPM.
After the PET bottle is filled, the cap is placed on it and the bottle with cap is pressed into the rotating Die.
The rotating Die then automatically holds the cap and tightens the cap on the bottle. This whole operation takes about 4-5 seconds depending upon the dexterity of the operator.
A torque setting is provided to ensure the correct tightness of the cap. The amount of tightness required can be adjusted with the help of spring-loaded ball provided.
The advantage of the machine is that all the bottles are evenly tightened and operator fatigue is low.
An optional stand is available to fix the machine on a wall or table.
About 10 bottles can be capped per minute.

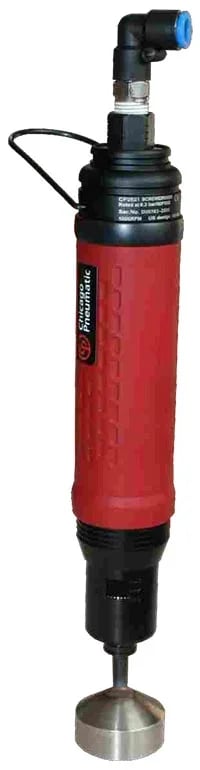

PET Bottle Capping Machine – Pneumatic
This is an easy to use machine for capping plastic bottles – fast. It is very handy and portable and can cap about 10-12 bottles per minute depending on the user’s speed. It must be connected to an air compressor. An FRL must be fitted in the pipe from air compressor to the machine.
It has a torque setting which ensures that the cap is tightened exactly as much as required. The cap is placed on the bottle and the Pneumatic Capper is pressed on the cap. It is tightened and stops once the set torque is reached.
It’s unique features are:
Being pneumatically operated , it requires very little maintenance except for oil in the FRL.
Easy to use and requires very little skill.
It is light weight and portable.
Uses minimum quantity of air only when it is actually capping.
No electrical connection and therefore free from short circuits and carbon brush problems.

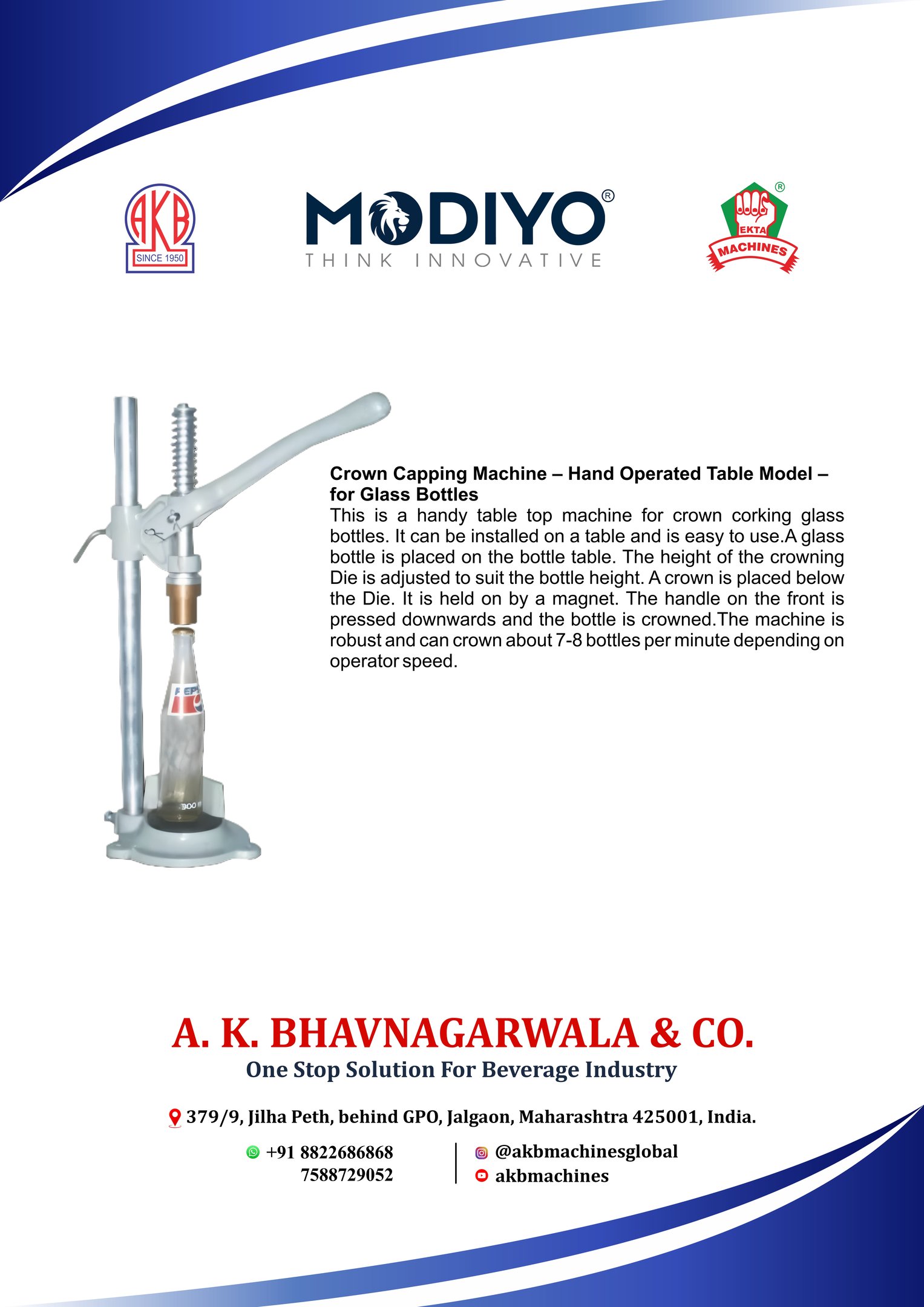

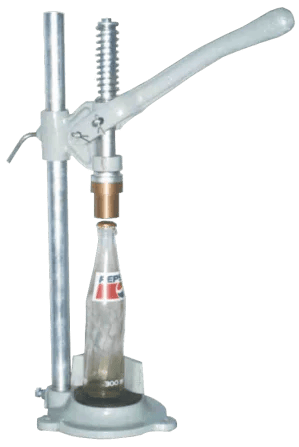

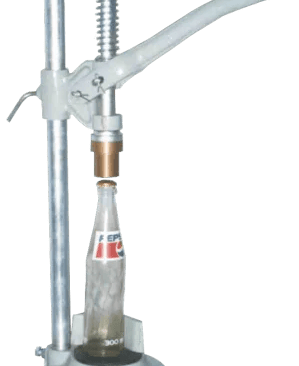

Crown Capping Machine – Hand Operated Table Model – for Glass Bottles
This is a handy table top machine for crown corking glass bottles. It can be installed on a table and is easy to use.
A glass bottle is placed on the bottle table. The height of the crowning Die is adjusted to suit the bottle height. A crown is placed below the Die. It is held on by a magnet. The handle on the front is pressed downwards and the bottle is crowned.
The machine is robust and can crown about 7-8 bottles per minute depending on operator speed.

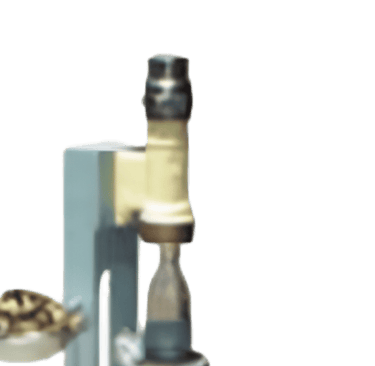

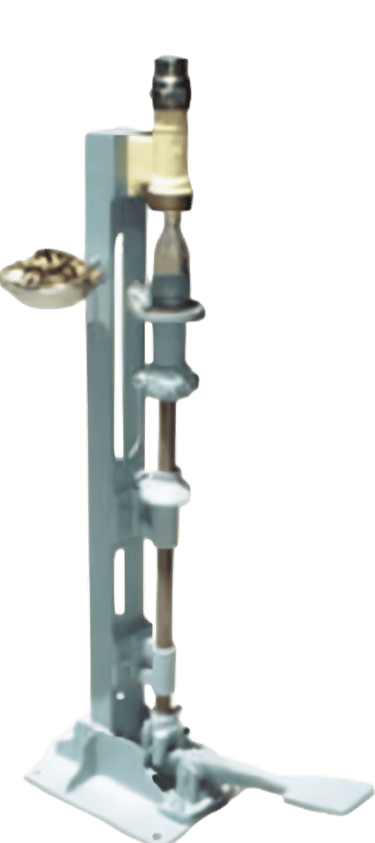

Crown Capping Machine Foot Operated – Floor Model for Glass Bottles
The Foot Operated Crowner is ideal for crown capping glass bottles. It can cap bottles from 200 ml to 1000 ml. For this the height of the bottle table can be adjusted. It is easy to install and use. The stand is made of MS. The Capping head is of Gunmetal. The machine is very sturdy.
One Crown is inserted into the filling head. A bottle is placed on the bottle table. The foot pedal is pressed and the bottle gets capped. The capped bottle is removed and the next one is placed. Fast and accurate capping are its main advantages. About 300 – 350 bottles can be capped per hour depending on the dexterity of the operator. The machine is available as Hand or Pneumatically operated also.

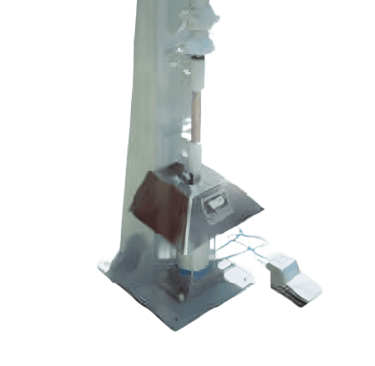

Crown Capping Machine Pneumatically Operated Floor Model – for Glass Bottles
This is a Pneumatically Operated Crown Capping Machine for glass bottles. It can be used to cap glass bottles from 200 ml to 1000 ml. The bottle table can be adjusted according to the size of bottle to be capped. An air compressor of 1 HP is required. The machine has a rigid MS stand and is very sturdy. The pneumatic components used are of the best quality. It is easy to install and use.
One crown is inserted into the filling head. A bottle is placed on the bottle table. Then the pneumatic foot switch is pressed to cap the bottles. Since the machine is pneumatic, the capping pressure can be set to get fast and accurate capping. About 300 – 350 bottles can be capped per hour depending on the dexterity of the operator. The machine is available as hand or foot operated also.

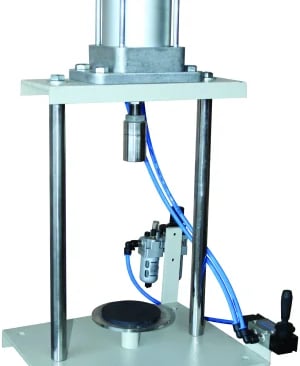

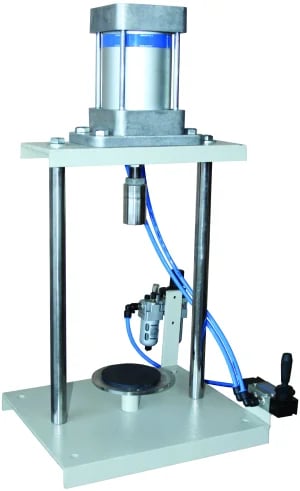

Crown Capping Machine Pneumatically Operated Table Model – for Glass Bottles
The machine is a table top model crown capping machine pneumatically operated. It can be installed on a table top.
The machine is connected to an air compressor. A crown is placed on the Die where it is held by a magnet. A bottle is placed on the bottle table and the hand lever is operated. After capping the bottle can be taken off for the next bottle. About 6-8 bottles can be capped per minute depending on the speed of the operator. Since it is pneumatically operated the bottles are crowned evenly and accurately. The pressure of crown capping can be set as required depending on the thickness & quality of the crown.
The machine is compact and portable. Air consumption is minimal and maintenance is limited to change of crowning Die when it gets worn out and change of oil in the FRL which controls the air quality and pressure from the compressor. The machine can cap glass bottles of all sizes from 200 ml to 750 ml.

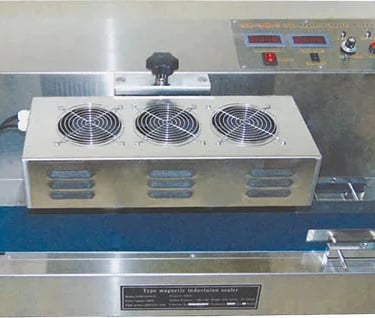

Induction Sealing Machine – Continuous with Conveyor
The Continuos Induction Sealer is a simple machine to heat seal foils on top of plastic bottles.
The method of use is simple:
Install the machine on a table top.
Place the foil with wad on top of the bottle and screw the cap tight.
Place the bottle on the conveyor.
When the bottle moves below the sealing section, the foil inside is heated and sealed on to the plastic bottle by electromagnetic induction Take off the bottle after sealing at other end of the conveyor.
Bottles can be placed continuously one after the other for fast and easy sealing.
The output of the machine depends on the speed the bottles are placed.
Features:
Employs the principle of electro magnetic induction.
Simple in operation, air cooled.
Ideal for large production.
Economically priced .
A hand operated model is also available.

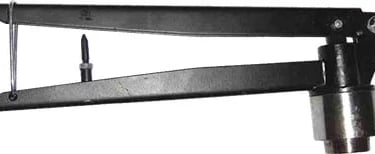

Vial Cap Crimping & Decrimping Machine – Hand Operated
The Hand Held Crimping machine is an indispensable tool for hospitals, pharmaceutical companies, research institutes, labs etc for crimping vial caps.
The machine is hand operated. It gives perfect and tight vial cap sealing. The working parts of the Crimper are hardened steel. The machine is strongly built and is light weight and easy to use. Just place it on the cap to be crimped and press the two levers together like a cutting plier for crimping on the bottle. About 8-10 bottles can be capped per minute depending on the speed of the user.

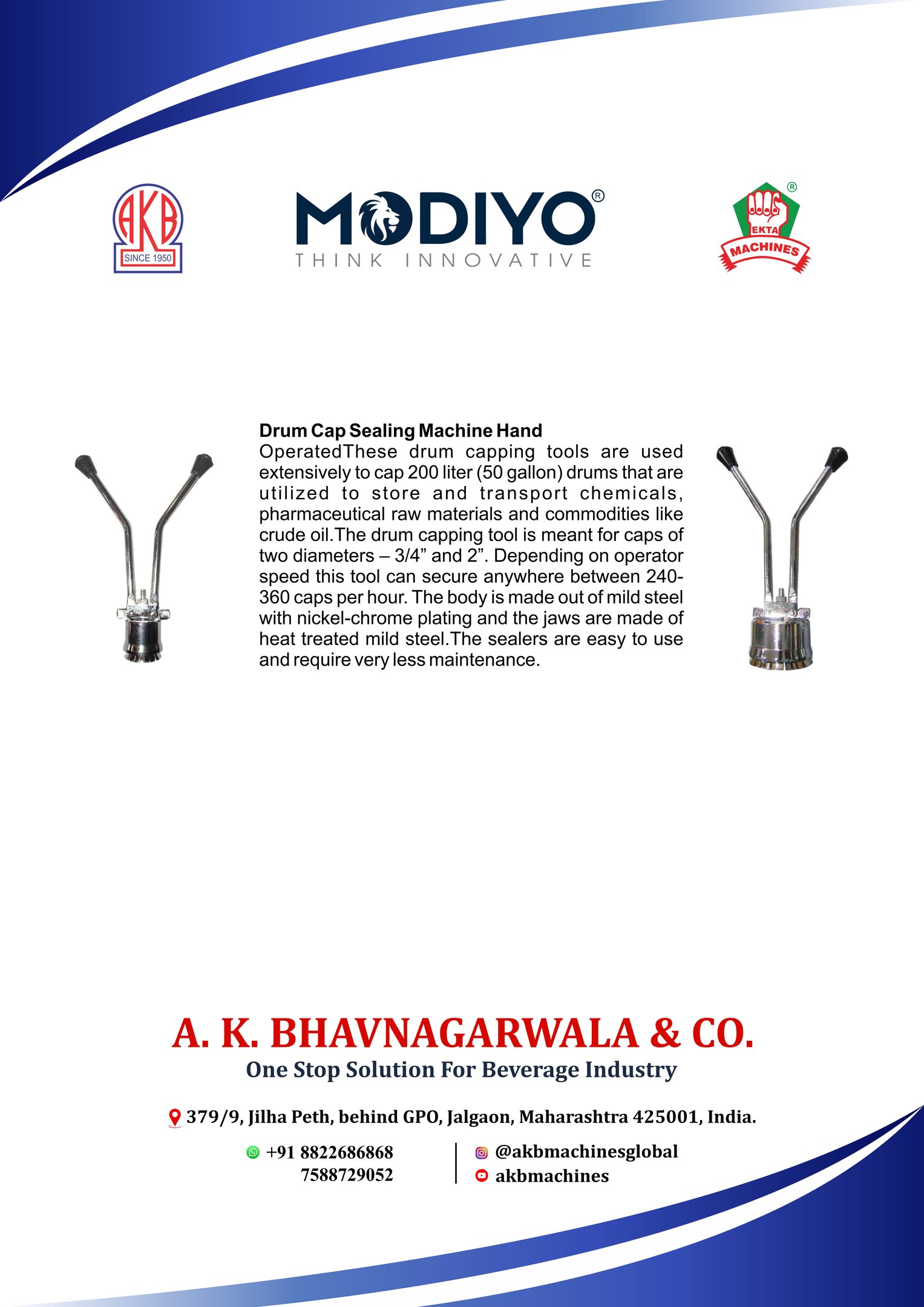

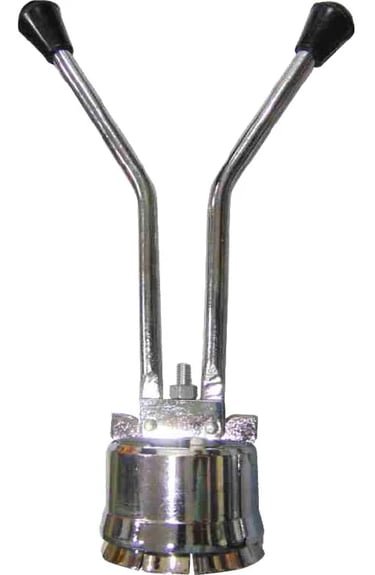

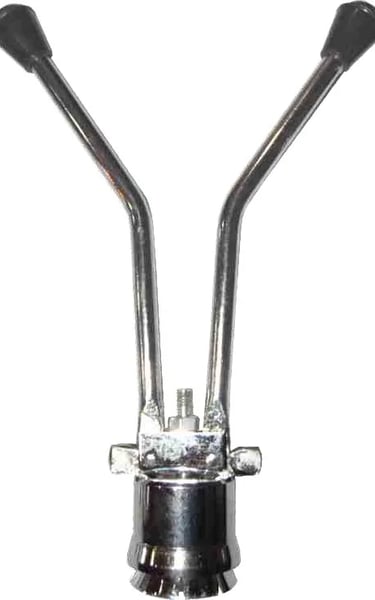

Drum Cap Sealing Machine Hand Operated
These drum capping tools are used extensively to cap 200 liter (50 gallon) drums that are utilized to store and transport chemicals, pharmaceutical raw materials and commodities like crude oil.
The drum capping tool is meant for caps of two diameters – 3/4” and 2”. Depending on operator speed this tool can secure anywhere between 240-360 caps per hour. The body is made out of mild steel with nickel-chrome plating and the jaws are made of heat treated mild steel.
The sealers are easy to use and require very less maintenance.
It is available in mild steel body or full stainless steel body
Unique Features:
An indispensable tool for Hospitals, Research Institutes, Ayurvedic Concerns, Pharmaceutical Industries & Allied Traders.
Gives perfect & tight vial sealing.
Smooth operation.
It can be used for either small or large production.
Strongly built body & light in weight.
Hardened working parts.
Available in mild steel – chrome plated body as well as in stainless steel body.
Very simple operation.
The machine can be held in the hand very easily in its open position.

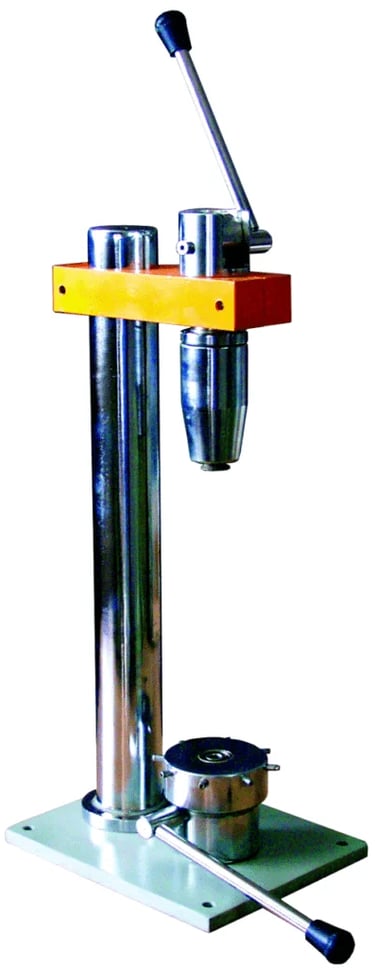

Aerosol Can Crimping Machine – Hand Operated
This machine is used for crimping Aerosol Cans.
It is a simple machine to use.
The cap to be crimped with the valve is placed on the mouth of the filled Can.
The height adjustment is made according to the height of the Can.
The handle is then pressed.
The Crimping Collet opens and crimps the cap.
The Can is removed rom the machine.
Any Can may be crimped. The Collet is suitable for 25 mm cap.
An average production of about 6 Cans per minute can be achieved. However, this depends on the dexterity of the operator.
The Machine can be supplied pneumatically operated also.
