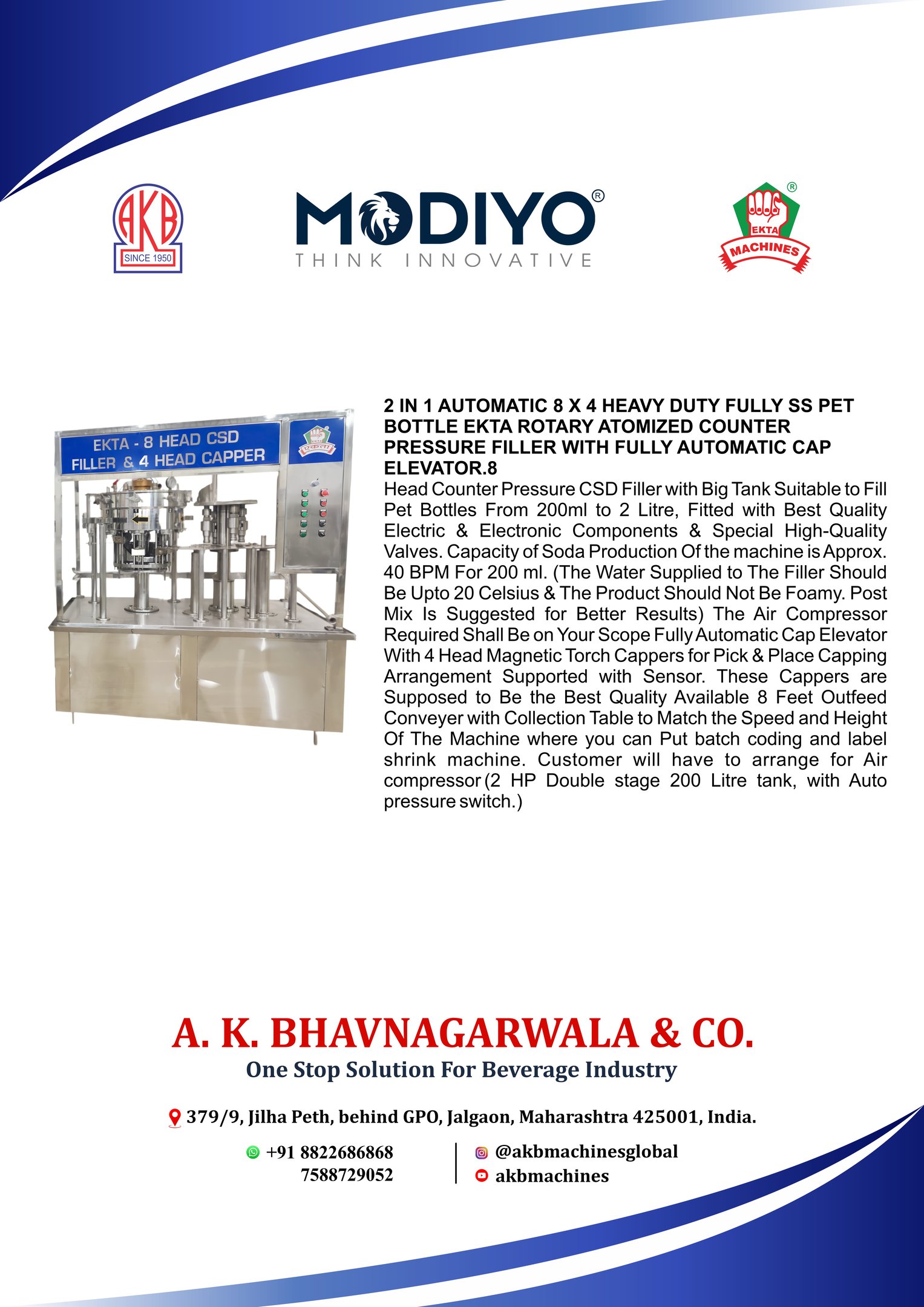

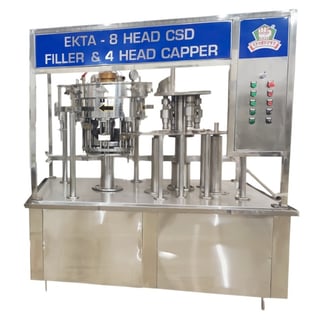

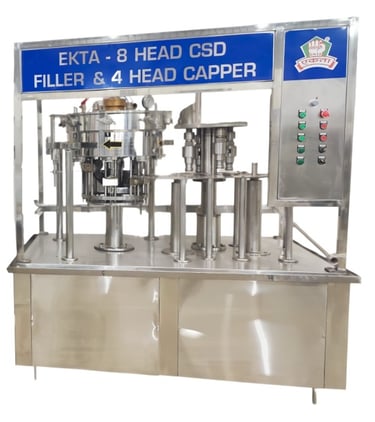

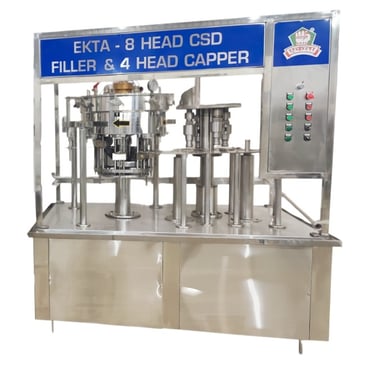

8 Head Counter Pressure CSD Filler with Big Tank Suitable to Fill Pet Bottles From 200ml to 2 Litre, Fitted with Best Quality Electric & Electronic Components & Special High-Quality Valves. Capacity of Soda Production Of the machine is Approx. 40 BPM For 200 ml. (The Water Supplied to The Filler Should Be Upto 20 Celsius & The Product Should Not Be Foamy. Post Mix Is Suggested for Better Results) The Air Compressor Required Shall Be on Your Scope Fully Automatic Cap Elevator With 4 Head Magnetic Torch Cappers for Pick & Place Capping Arrangement Supported with Sensor. These Cappers are Supposed to Be the Best Quality Available 8 Feet Outfeed Conveyer with Collection Table to Match the Speed and Height Of The Machine where you can Put batch coding and label shrink machine. Customer will have to arrange for Air compressor (2 HP Double stage 200 Litre tank, with Auto pressure switch.)
2 IN 1 AUTOMATIC 8 X 4 HEAVY DUTY FULLY SS PET BOTTLE EKTA ROTARY ATOMIZED COUNTER PRESSURE FILLER WITH FULLY AUTOMATIC CAP ELEVATOR.

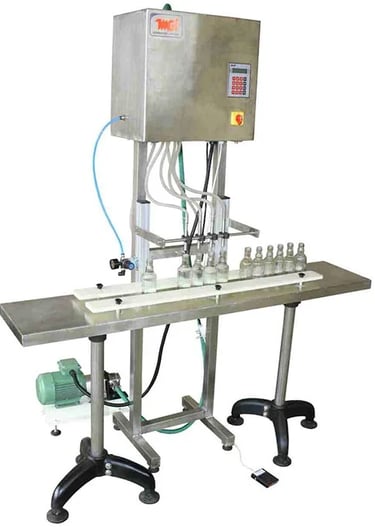

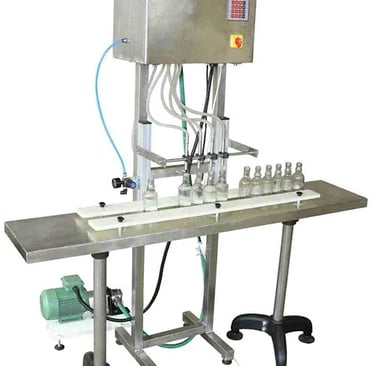

Semi Automatic Timed Gravity Liquid Filling – Linear – with PLC Machine
The Semi Automatic Liquid Filling Machine is ideal for bulk filling of all types of non-viscous liquids in Glass, PET or other types of bottles. The machine is a low cost option for the small and medium scale industries. It is PLC controlled and the exact quantity of liquid required to be filled can be set. Quantity of liquid can be set from 50 ml to 2 liters. It is useful for filling liquids like Mineral Water, Milk, Juices, Liquid soaps, Medicines, Edible Oils etc. Hot filling is also possible.
The Machine consists of a long table on which the bottles can be kept in a line. There is a small tank on top of the machine with an automatic liquid level sensor and a pump. There is a control panel with a PLC to control the fill quantity and other features of the machine.
A brief method of using the machine:
Switch on the machine.
Calibrate the machine according to the viscosity of the liquid to be filled.
This is a one time setting.
Set the quantity of liquid to be filled.
Switch on the pump. Liquid fills in the overhead tank.
Align four bottles with the four filling nozzles and press a foot switch.
The bottles are filled with the set quantity of liquid.
Push the next batch of four bottles in place and press the switch and soon.
Production can be anything between 8-16 bottles per minute depending on the quantity & viscosity of liquids and the speed of the operator
Advantages of the machine:
Easy to use and requires very less maintenance.
Flexibility of use to accommodate all types of liquids and bottles. The filling nozzles can be adjusted quickly according to the diameter and height of the bottles.
Easy to clean after use.
User friendly and does not require much training.
The filling is controlled pneumatically and so an air compressor with a 1 Hp motor is required.

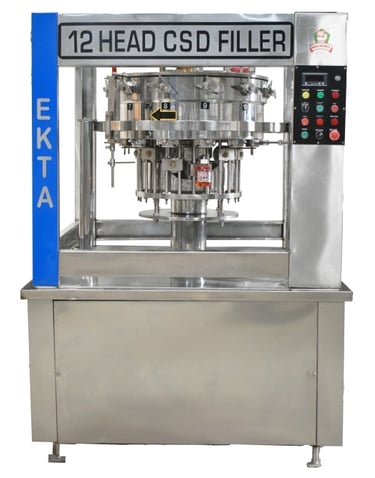

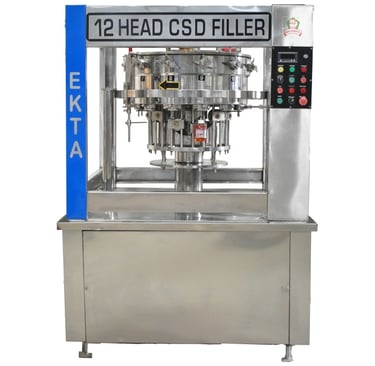

The 12-Head Heavy Duty PET Bottle Ekta Rotary Atomized Filling Machine
is a high-performance solution designed specifically for filling carbonated soft drinks (CSD) ranging from 200ml to 2 litres. Built with a strong and durable structure, this machine features a rotary atomized filling system that ensures splash-free and foam-free filling, preserving the carbonation and quality of the beverage. With 12 precision-engineered filling heads, it offers an impressive average speed of 40 bottles per minute for 200ml soda. The machine is equipped with top-quality electric and electronic components, including advanced PLC controls, sensors, and hygienic food-grade valves to deliver consistent, reliable performance in demanding production environments. Its stainless-steel construction and compatibility with various PET bottle sizes make it an ideal choice for beverage manufacturers seeking speed, accuracy, and long-term durability. Optional integration with capping, labeling, and printing units makes it a complete bottling line solution.
