Soda Soft Drink Pet Bottle Filling Machine

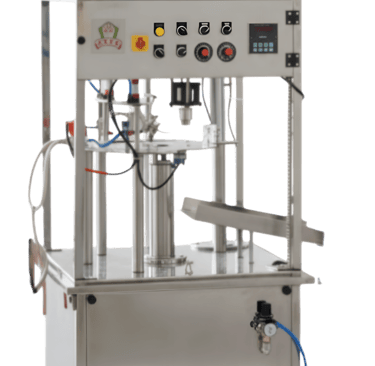

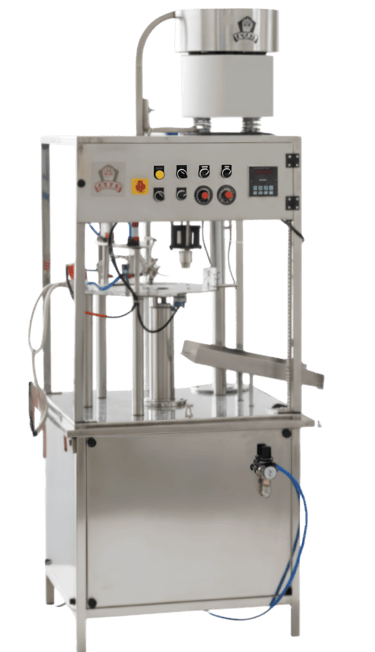

EKTA PORTABLE 15–18 BPM AUTOMATIC FILLING & CAPPING MACHINE
A compact, heavy-duty machine for accurate filling and capping of carbonated soft drinks. Built with SS matt finish body and “No Bottle No Filling System”, it ensures spill-free, smooth and consistent operation with minimal foaming.
Ideal for reliable and efficient beverage production.
Key Features
• Speed: 15–18 BPM
• Filling Accuracy: ±1%
• Fill Range: 5 ml – 2000 ml
• No Bottle No Filling System
• Reciprocating self-centering nozzles
• SS vibration-free construction
• Easy control panel with safety protection
• Quick changeover for bottle sizes
• Basic Specs
• Output: 700–750 bottles/hour
• Motor: 1 HP / 415V
• Bottle Size: Ø28–100 mm | Height: 58–240 mm
• Air Pressure: 6 Bar
• Power Load: 2 KW

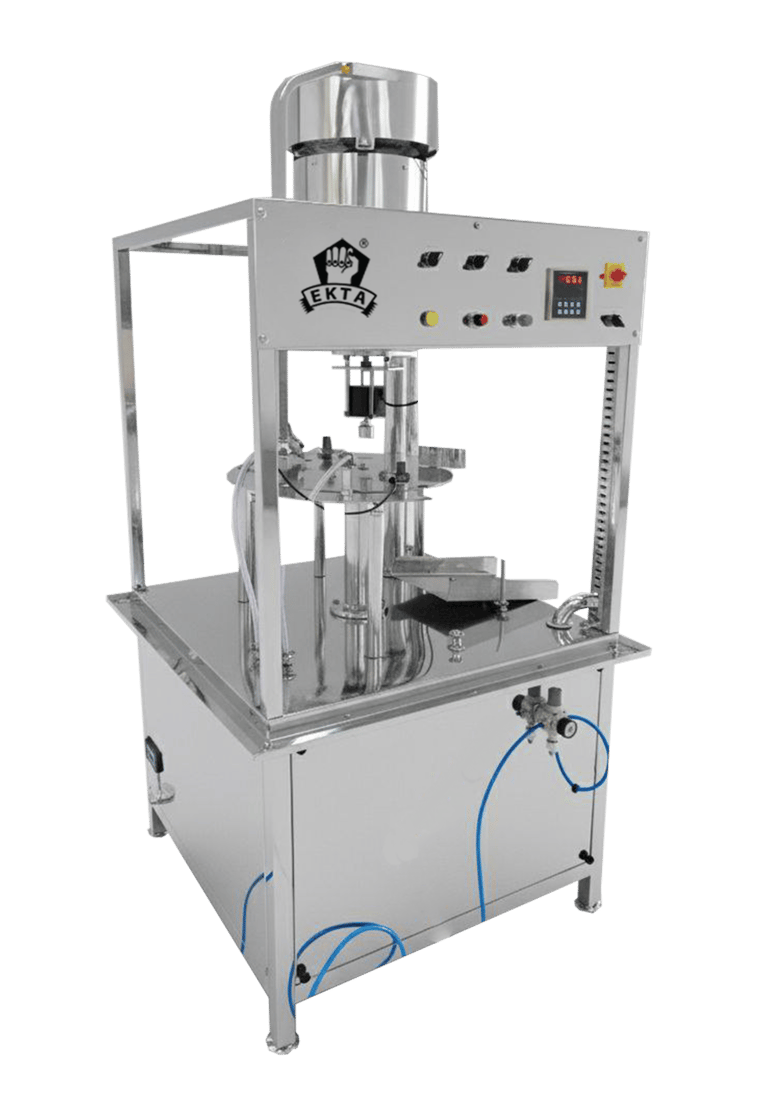

EKTA PORTABLE 20–22 BPM
HEAVY DUTY PET BOTTLE AUTOMATIC FILLING & CAPPING MACHINE
Compact and heavy-duty automatic filling & capping machine designed for PET bottles and carbonated soft drinks. Operates on gravity filling principle with accurate, foam-controlled and spill-free filling.
Key Features:
• Output 20–22 BPM
• ±1% filling accuracy
• No Bottle – No Filling system
• Self-centering reciprocating nozzle
• Adjustable nozzle to reduce foaming
• SS matt finish heavy-duty body
• Pneumatic bottle stopper system
• Variable frequency AC drive
• Easy operation & low maintenance
Technical Highlights:
• Fill Range: 5 ml – 2000 ml
• Output: 1200–1300 bottles/hour
• Power: 1 HP / 415V / 50 Hz
• Air Pressure: 6 bar
Ideal for: Carbonated soft drinks, beverages & PET bottle applications.

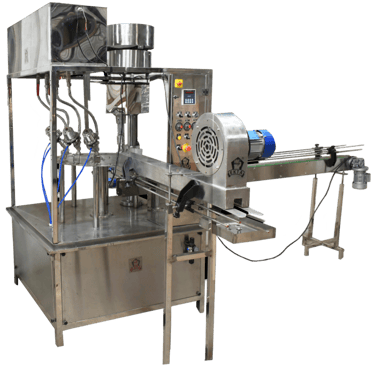

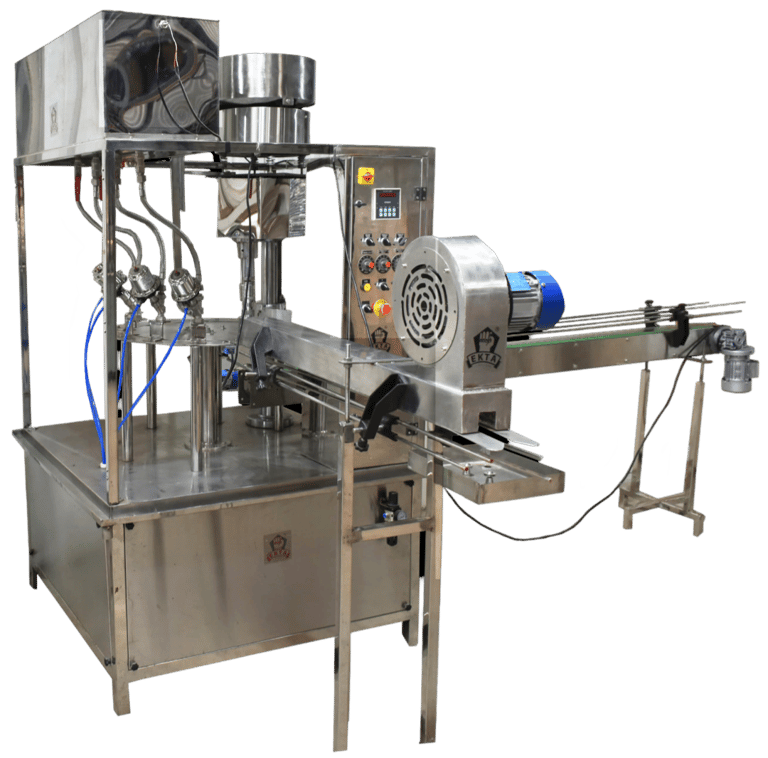

EKTA HIGH SPEED FULLY AUTO JUICE FILLING & CAPPING MACHINE
(Suitable for Hot & Pulpy Juices)
This fully automatic machine is designed for high-speed filling and capping of hot and pulpy juices with accurate volume control.
It uses German filling principle and specially designed valves to handle liquids up to 90°C, ensuring hygienic, leak-proof and
efficient production.
The system includes automatic capping with vibrator hopper, infeed air blow conveyor, SS outfeed
conveyor and 2-head rinser for proper bottle cleaning and smooth operation.
Key Features:
• 4 Head High-Speed Juice Filling Valves
• Suitable for hot filling up to 90°C
• Automatic Capping with SS 304 Vibrator Hopper
• Infeed Air Blow Conveyor & SS Outfeed Conveyor
• 2 Head Bottle Rinser for cleaning
• Variable Speed AC Drive
• Leak-proof & accurate filling system
Technical Specifications:
• Capacity: 2000 Bottles / Hour
• Voltage: 220V
• Weight: 350 kg
• Machine Size: 1200 x 1200 x 2100 mm
• Control System: Timer Control
• Drive Type: Mechanical
