JUICE PROCESSING MACHINERY
ELECTRIC SUGAR BOILER TANK – SS (100 LTR)
Heavy-duty Electric Sugar Boiler Tank specially designed for efficient and uniform heating of sugar syrup and other
liquid formulations. Manufactured with SS 304 double jacketed construction, this machine ensures hygienic operation,
consistent heating and long service life. Ideal for food, beverage and pharmaceutical applications.
Technical Specifications:
Tank Capacity: 100 Litres
Tank Type: Double Jacketed SS 304
Tank Weight: Approx. 100 Kg
Outer Diameter (Breadth): 23 Inches
Tank Length: 21 Inches
Tank Height: 39 Inches
Key Features:
Digital Control Panel for accurate temperature control and easy operation
3 KW Electric Heater (1 Pc) for fast and uniform heating
Heating Sensor System for safe and controlled heating process
Single Phase Motor (1440 RPM) for smooth and stable performance
SS 304 Stirrer with Agitator Blade ensures uniform mixing without sedimentation
GMP Model Design suitable for hygienic production environments
All Control Parts Made of SS 304 for corrosion resistance and durability
Equipped with Line Filter for electrical safety and consistent performance

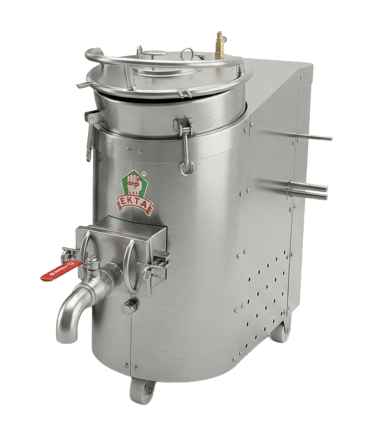

EKTA MULTIPURPOSE PROCESSING MACHINE – AKB-60
Ekta Juice Processing Machine AKB-60 is a heavy-duty multipurpose natural juice processing machine designed for
efficient heating, mixing and processing of various fruit-based products. Built with food grade SS 304 construction,
this machine ensures hygienic operation, durability and consistent output, making it ideal for juice manufacturers,
beverage units and food processing industries.
Technical Specifications:
• Tank Volume: 28 Litres
• Motor: 1 HP Heavy Duty Motor
• Heater: 1 Heater – 3 KW
• Construction: Food Grade SS 304
Key Features:
• Multipurpose Processing Capability for a wide range of fruits and juice formulations
• Temperature Controller for precise heating control
• RPM Controller for adjustable stirring and processing speed
• Heavy Duty Stirrer System for uniform mixing and smooth processing
• Oil Separator Funnel with Stand for clean and efficient separation
• Hygienic GMP-oriented Design suitable for food processing applications
• Compact & User-Friendly Operation with low maintenance
SUGAR FILTER PRESS MACHINE – SS (EKTA BRAND)
Ekta Brand Sugar Filter Press Machine is a heavy-duty sugar syrup filtration system designed to remove all impurities
and deliver clear, hygienic syrup output. Built with a robust stainless steel frame and body, this machine ensures long-
lasting performance and efficient filtration, making it ideal for juice, beverage and food processing units.
Technical Details:
• Filtration System: 8-Stage Sugar Syrup Filtration
• Capacity: 1 PC
• Material of Construction: SS Frame & Body
• Filtration Capacity / Flow Rate: 200 LPH to 500 LPH
• (Depending on syrup viscosity)
Key Features:
• Heavy Duty Filtration System for effective impurity removal
• 8 Filtration Plates for clear and consistent syrup output
• SS Construction ensures hygienic processing and corrosion resistance
• High Flow Rate Performance suitable for medium to high production
• Reliable & Low Maintenance Design
• Ideal for Sugar Syrup, Juice & Beverage Applications

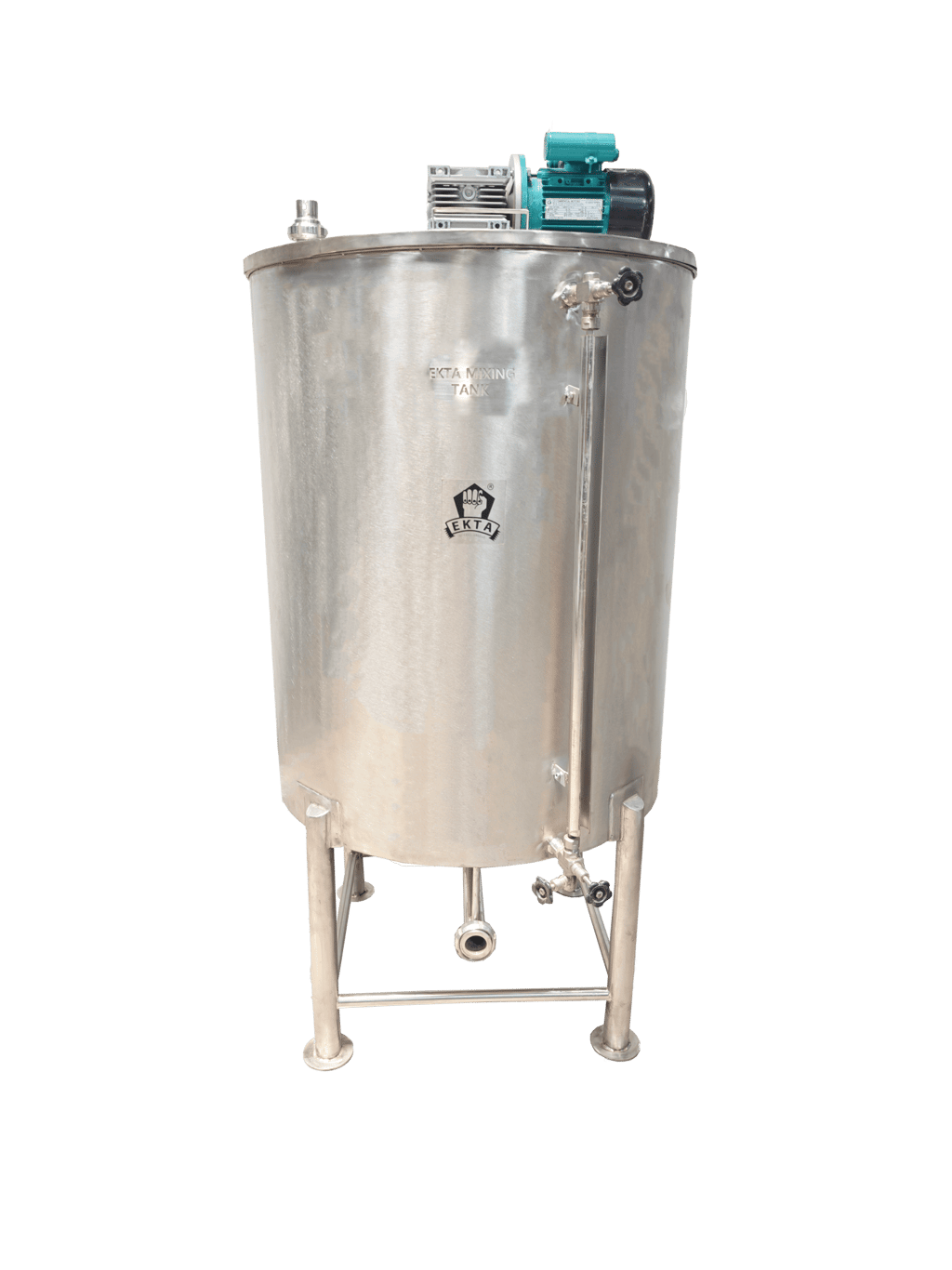

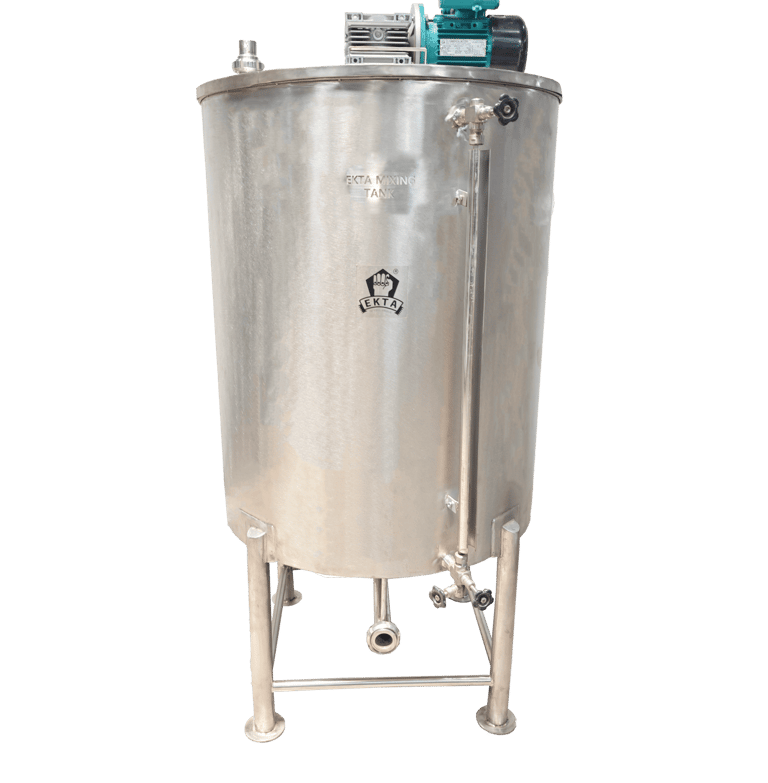

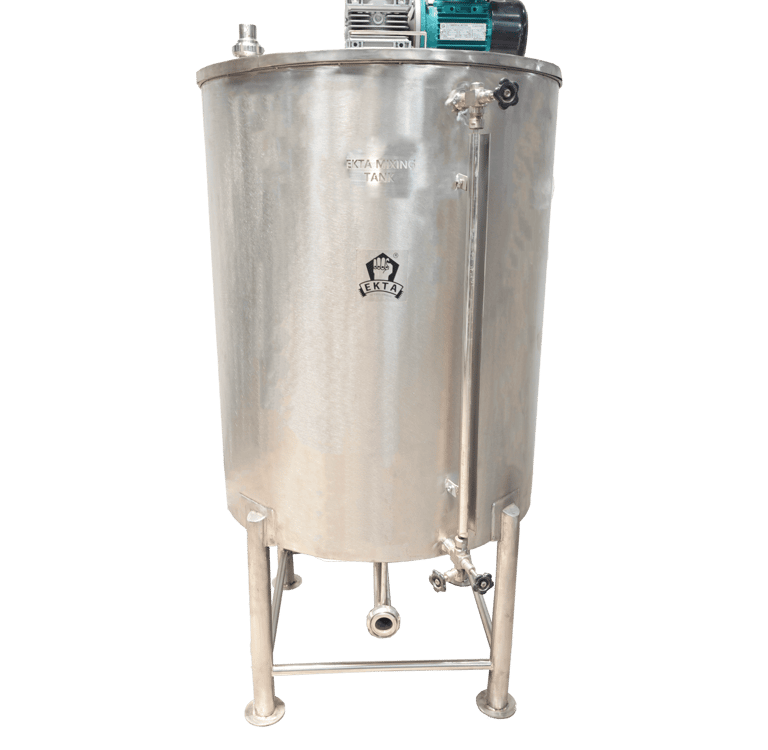

FLAVOR MIXING TANK – SS (HEAVY DUTY)
Flavor Mixing Tank SS is a full stainless steel, heavy-duty mixing solution designed for efficient and uniform mixing of
flavours, syrups and liquid formulations. Equipped with a motorized stirrer agitator and imported oil-free gearbox, this
tank ensures smooth, consistent and homogeneous mixing without contamination. Ideal for beverage, juice and food
processing industries.
Technical Specifications:
• Mixing Capacity: Up to 500 Litres
• Construction: Full SS Heavy Duty Body
• Stirrer Type: Motorized Agitator System
• Gearbox: Imported Oil-Free Gearbox
Key Features:
• Uniform & Homogeneous Mixing of flavours, syrups and formulations
• Heavy Duty SS Construction for hygienic and long-lasting operation
• Imported Oil-Free Gearbox prevents oil contamination
and ensures smooth torque
• Powerful Motorized Stirrer for efficient mixing of viscous
liquids
• Low Noise & Low Maintenance Operation
• GMP-Oriented Design suitable for food & beverage applications
