INDUSTRIAL CHILLING SOLUTIONS

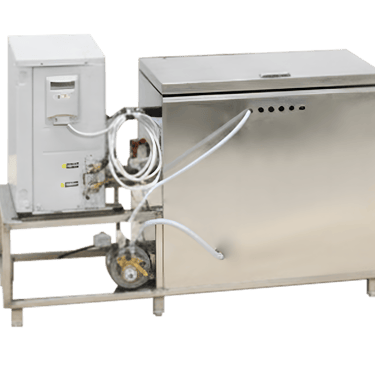

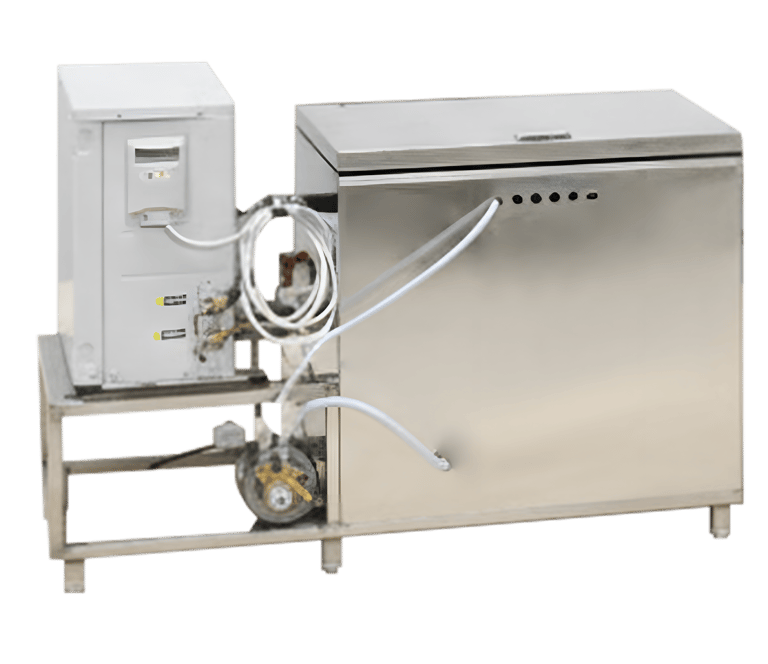

EKTA PORTABLE CABONATION SYSTEM WITH 250 LITERS WATER CHILLER & 1.5 TONNE
COMPRESSOR FITTED WITH SODA COIL, SYRUP COILS & HIGH-PRESSURE PIPELINE A Specially designed
carbonation system is provided equipped with a compatible chilling device to get a precise carbonation for PET
Bottling machine. It’s a heavy-duty machine made up of Food Grade SS304 material suitable for high pressure
carbonated drinks.
250 LITERS WATER CHILLER
With superior 90 mm insulation the chiller maintains cooling in spite of long power outage. It helps in cost saving by
consuming up to 53% less power, the inner coil designing is done using corrosion resistant 100% copper. Internal
Body is made of Stainless-Steel material which is Highly Durable & Rust Free.
Capacity - 250 Litres
Dimensions (mm /inch) - 900x850x735mm / 36x34x29 inch
Temperature Range - (-23°C) to +8°C
No. of Baskets - 1
No. of Doors - 1
Insulation - 90mm High Density PUF CFC Free
Refrigerant - R-134a
Voltage Single Phase - 190-254V, AC, 50Hz
Inner & Outer body Material - Corrosion Resistant
Pre-Painted Galvanised Steel sheet
Salient Features
• 2 in 1 Convert Green Freezer & Cooler: Up to 53%
less power consumption
• 100% Copper Cooling Coil
• 90 MM High Density PUF
• Upto 50% Less Heat Generation & Upto 12 Years Life
• Upto 10 Hours Backup/ Hold Over after power Cut
• Internal Stainless-Steel Body. Highly Durable

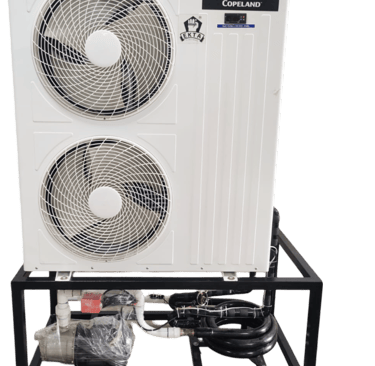

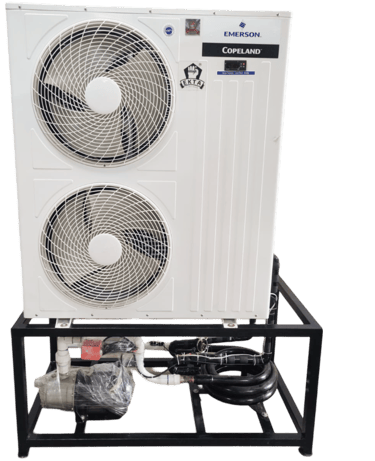

2 TR ONLINE AQUA CHILLER – HEAVY DUTY MODEL
2 TR Online Aqua Chiller is a heavy-duty, low-maintenance cooling system designed for continuous industrial
applications. It is equipped with a coaxial coil heat exchanger that ensures fast and efficient cooling with smooth and
reliable operation. This model is ideal for RO plants, beverage processing and water cooling applications.
The chiller features a digital temperature controller and water flow switch for precise temperature regulation and
operational safety. Its robust design, along with essential safety features, ensures long-lasting and trouble-free
performance.
Technical Specifications:
• Cooling Capacity: 2 TR
• Type: Online Aqua Chiller
• Condensing Unit: Single HP, 50 Hz
• Heat Exchanger: Coaxial Coil Type
• Pump: Water Pump with SS Neck
• Control System: Digital Temperature Controller
Key Features:
• Coaxial Coil Heat Exchanger for quick and efficient cooling
• Digital Temperature Controller for accurate temperature setting
• Water Flow Switch ensures safe operation and protects the system
• Heavy Duty Condensing Unit suitable for continuous usage
• Low Maintenance Design with easy operation
• Equipped with Required Safety Features for reliable performance
• Ideal for RO Plants, Beverage & Industrial Cooling Applications

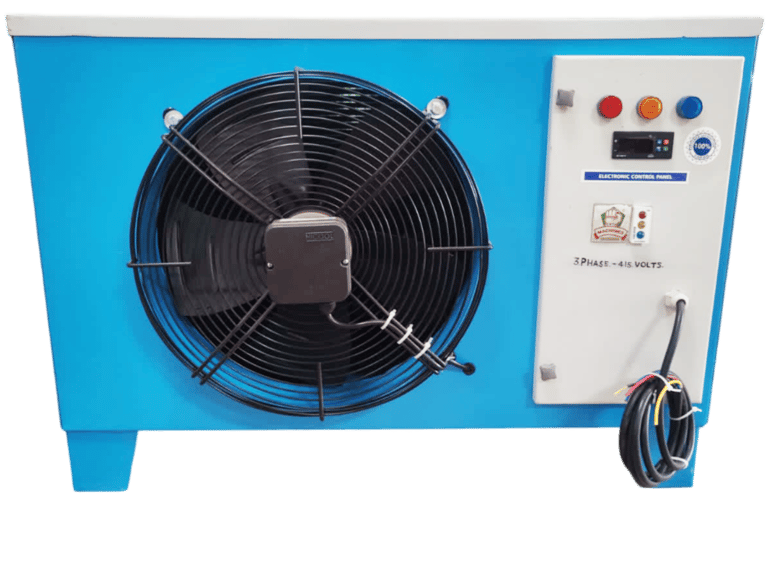

5 TR ONLINE AQUA CHILLER – HEAVY DUTY MODEL
5 TR Online Aqua Chiller is a high-performance, heavy-duty cooling system designed for continuous industrial and RO
plant applications. Available in Shell Type or Coaxial Type heat exchanger, this chiller ensures efficient cooling with
stable and reliable operation. Built with a CNC-fabricated heavy-duty body, it is suitable for demanding working
conditions.
The unit is equipped with an auto sensor and digital temperature display for precise temperature monitoring and
control. Its air-cooled design ensures efficient heat dissipation with low maintenance requirements.
Technical Specifications:
• Cooling Capacity: 5 TR
• Type: Online Aqua Chiller
• Heat Exchanger: Shell Type / Coaxial Type
• Power Supply: 3 Phase, 50 Hz
• Cooling Type: Air Cooled
• Body: Heavy Duty CNC Fabricated
• Control System: Auto Sensor with Digital Temperature Display
Key Features:
• High-Efficiency Cooling Performance for continuous operation
• Shell / Coaxial Heat Exchanger for fast and effective cooling
• Digital Temperature Display for accurate monitoring
• Auto Sensor System for safe and reliable operation
• Heavy Duty CNC Fabricated Body for long service life
• Low Maintenance & User-Friendly Design
• Ideal for RO Plants, Beverage & Industrial Cooling Applications
