WEB SEALER & HEAT SHRINK LABELLING MACHINE

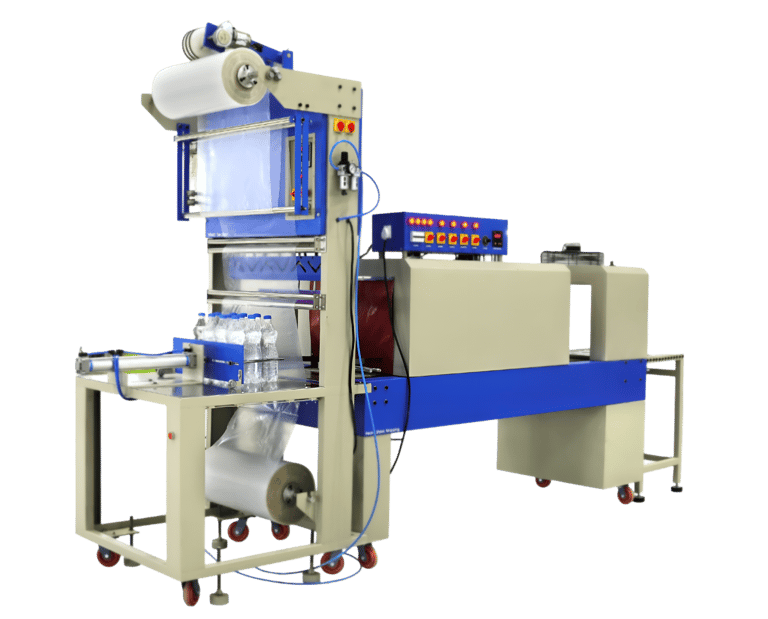

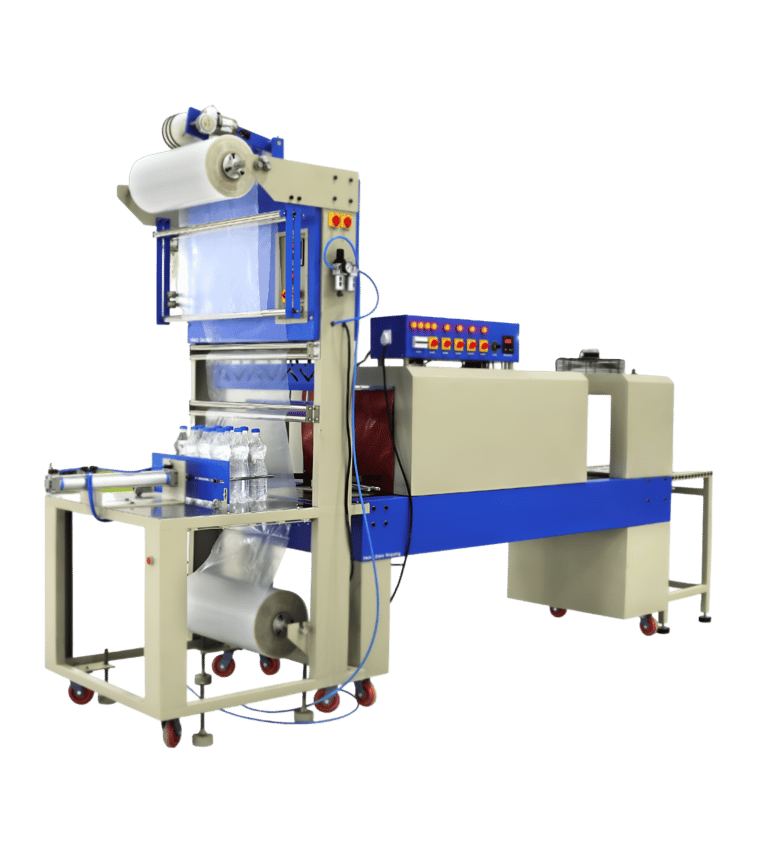

WEB SEALER HEAVY DUTY HEAT SHRINK MACHINE
The Web Sealer Heavy Duty Heat Shrink Machine is designed for efficient and uniform shrink packaging of PET
bottles from 200 ml to 2 Liters. It ensures strong sealing, smooth operation, and consistent shrink results for industrial
use. The machine is built with a durable MS powder-coated body and equipped with advanced temperature
control for safe and reliable performance.
Key Features
• Suitable for 200 ml to 2 Liters PET bottles
• Heavy-duty heat shrink and web sealing system
• Machine Size: 66” x 28” x 50”
• Chamber Size: 36” x 20” x 14”
• Sealing Size: 600 mm x 1.5 mm
• Multispeed TC 44 Temperature Controller
• 0.25 HP Speed Ryder Motor & PMDC Drive
• 24” Heaters – 1250W (9 pcs)
• Blower Motor – 3 Phase, 2 pcs
• Power Consumption: 3.750 KW / 5 HP
• L&T Schneider switches for safety
• Strong MS powder-coated body
• Easy to operate & low maintenance

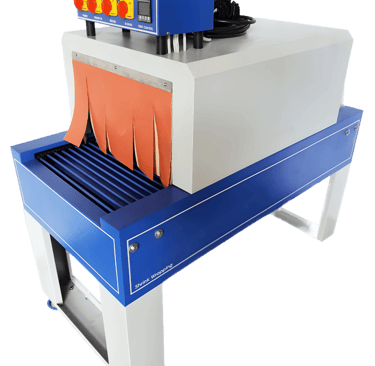

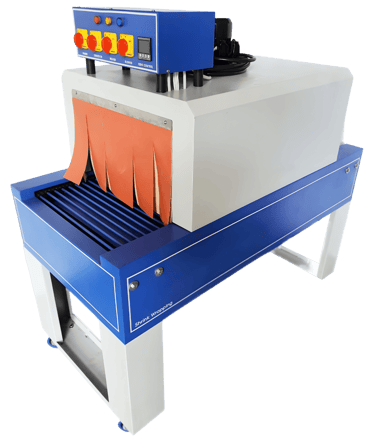

HEAT SHRINK LABELLING MACHINE
The Heat Shrink Labelling Machine is specially designed for smooth and uniform shrink labelling on bottles and
containers. It delivers precise shrinking with stable performance, making it ideal for beverage, cosmetic, and
packaging industries. The machine ensures efficient operation with low power consumption and easy maintenance.
Key Features
• Machine Size: 72” x 24” x 48”
• Tunnel Size: 30” x 18” x 10”
• Single Phase Power Supply
• Blower Motor: 2880 RPM
• Motor Transformer: 24V DC
• Conveyor Motor: 24W DC
• Heater: 18” 1000W (06 Nos)
• Conveyor Roller: 6 mm with Silicone Sleeve
• L&T Make Switches for safety
• Uniform shrinking & smooth label finish
• Easy operation & durable performance
